Glass Washing Machine

Automatic Glass Washing Machine for Glass Processing

Small Glass Washing Machine for Flat Glass Cleaning and Drying

CE EAC ISO9001 OEM

Key Features

High-precision automatic cutting control
Stable heavy-duty machine frame structure
Low maintenance and easy operation
OEM / ODM customization supported
CE, EAC, ISO9001 certified for global export

Get A Quote Specifications

20+ Years Experience

CE Certified

OEM Supported

8 Prod. Lines

Reliable Glass Processing Solution

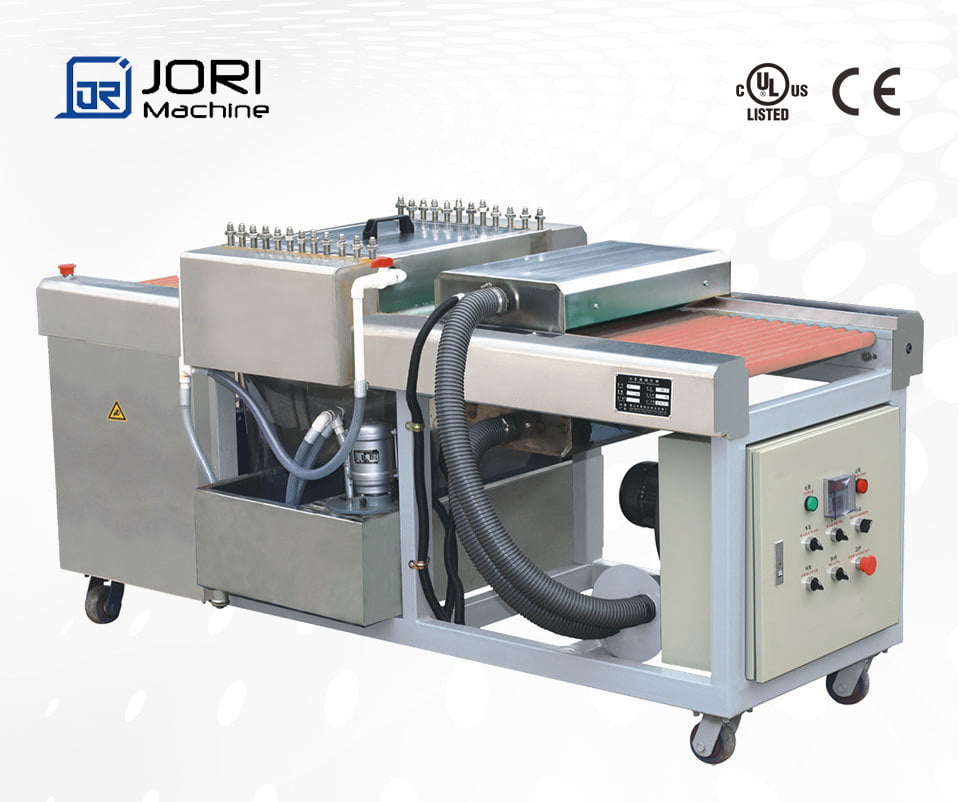

Small Glass Washing Machine designed for cleaning and drying flat glass before tempering, edging, laminating, and insulating. Glass washing machine ZYX500 is suitable for automatic cleaning and drying of different thick and thin glass and lenses with a width of no more than 1200mm, using horizontal transfer, 8 pieces brush sticks to clean, 6 or 8 pieces sponge rollers to dry; Compact structure, stable transmission, multi-brush washing system, and efficient air drying for glass processing factories.

Product Highlights

Glass washing machine JR500 type is suitable for automatic cleaning and drying of different thick and thin glass and lenses with a width of no more than 1200mm, using horizontal transfer, 8 pieces brush sticks to clean, 6 or 8 pieces sponge rollers to dry; 6 pieces stainless steel heating pipes. The powerful hot air drying system is used for drying, the temperature can be automatically controlled and set freely, and the conveying speed can be adjusted. The specifications of the glass cleaning machine JR series are: JR500, JR800, JR1200, JR1600, JR2000, etc.
Compact automatic glass washing machine suitable for architectural glass, furniture glass, mirror glass, and appliance glass processing. Features stainless steel structure, low energy consumption, stable operation, and easy maintenance.

Certifications & Standards

EAC

ISO9001

OEM/ODM

Model Specifications

Model	Max Glass Size	Glass Thickness	Processing Speed	Total Power	Machine Dimension	Machine Weight
JR500	450x1500mm	1-6mm	0-5m/min	9kw	1.9x0.9x1.0m	550kg
JR800	750x2000mm	2-12mm	0-5m/min	10kw	2.8x1.3x1.0m	750kg
JR1200	1150x2500mm	2-19mm	0-5m/min	12kw	3.4x1.6x1.0m	900kg
JR16000	1550x2500mm	2-19mm	0-5m/min	13kw	4.0x2.0x1.0m	1050kg
JR2000	2000x3600mm	3-25mm	0-5m/min	14kw	4.0x2.4x1.0m	1250kg

* Specifications subject to change without notice. Contact our sales team for the latest technical data and custom configurations.

Suitable Applications

Architectural Glass

For doors, windows, facades and curtain wall glass.

Mirror Glass

Suitable for mirror and decorative glass processing.

Furniture Glass

Table glass, cabinet glass and interior glass.

Industrial Glass

Supports customized glass cutting production.

Why Choose Jori?

Trusted by glass factories and engineering companies in over 20 countries worldwide.

Certified Quality

CE, EAC & ISO9001 certified for smooth customs clearance in global markets.

OEM

OEM / ODM Support

Flexible customization with 8 independent production lines and dedicated R&D team.

20+

Years Experience

Over 20 years of technical accumulation in glass processing machinery manufacturing.

24/7

After-Sales Service

Full technical support, installation guidance, spare parts and warranty coverage.

Get In Touch

Request A Quote For This Machine

Tell us your glass size, processing requirement, quantity and destination country. Our sales team will reply within 24 hours with machine options and quotation details.
