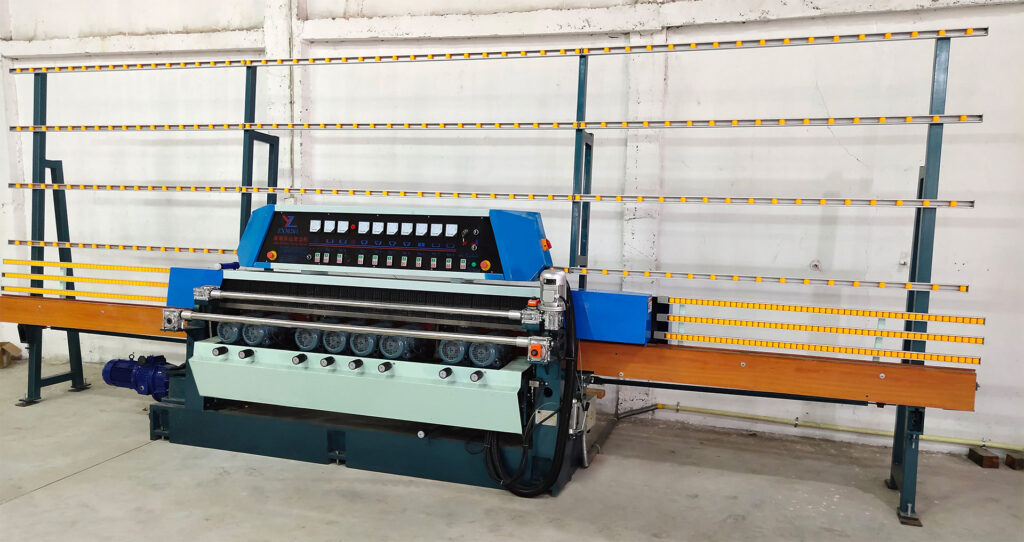

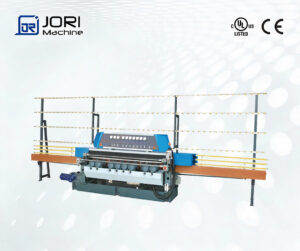

Glass Beveling Machine For Nine Grinding Heads Bevel Machine

Reliable Glass Processing Solution

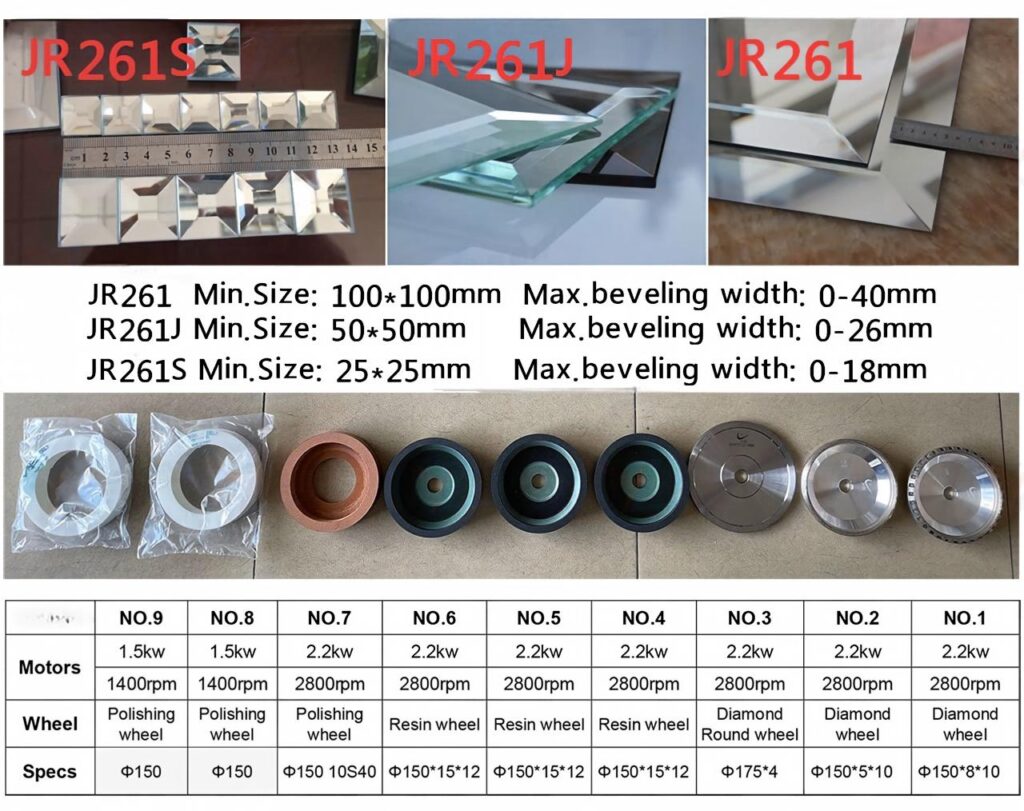

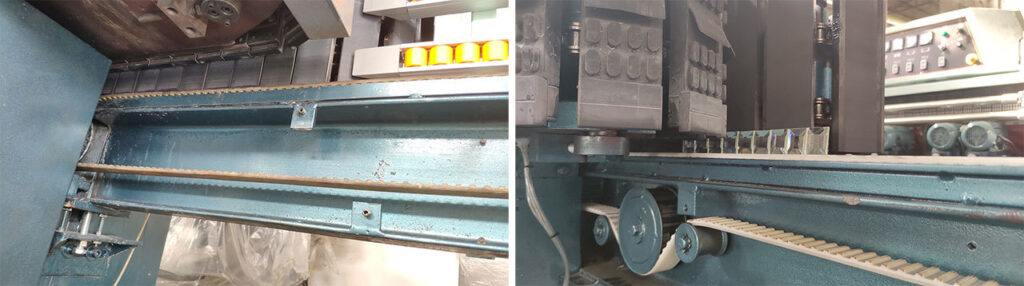

Glass beveling machine for nine grinding heads bevel polishing machine, conventional models of three JR261(min glass:100*100mm,max beveling width:40mm)/JR261J(min glass:50*50mm,max beveling width:25mm)/JR261S (glass mosaic machine,min glass:25*25mm,max beveling width:18mm), the machine adopts frequency control, bevel width for manual adjustment. This machine is suitable for grinding straight beveling edge and bottom base edge of flat glass, rough grinding, fine grinding, polishing of the beveling edge and grinding of the bottom edge are completed in one processing. The effect after polishing is consistent with the mirror; direct grinding head motor, compact structure, low voice, less failure; the motor controls the overall swing Angle of the double screw, with advanced structure, high precision, easy operation, strong stability and other advantages, suitable for mass glass bevel edge grinding.
