Glass Breaking Table

Reliable Glass Processing Solution

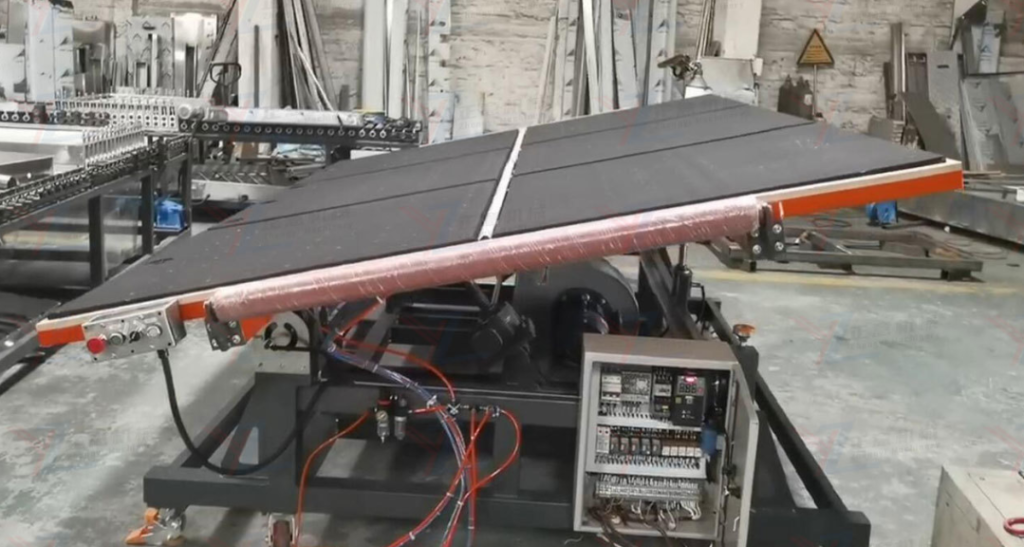

ZBF3624 Glass flip breaking table, this machine adopts high-pressure fan to supply air, form an air cushion on the table, make the glass float on the table, reduce the resistance of glass transportation, and make the glass convey on the table surface lightly.

Product Highlights

ZBF3624 Glass flip breaking table, this machine adopts high-pressure fan to supply air, form an air cushion on the table, make the glass float on the table, reduce the resistance of glass transportation, and make the glass convey on the table surface lightly. The machine is a longitudinal desktop structure. It is composed of rack, air flotation table, air supply system, flipping system, and breaking system. Advanced design, reasonable structure, neat appearance, easy to use, safe and reliable, excellent performance. The device can be turned 0-90 degrees, which is convenient for upper and lower glass. The X-axis has two robust breaking rods and the Y-axis has one breaking rod, which can adapt to the breaking needs of different sizes of glass. The equipment can be used with a T-type push knife for cutting and dicing. In addition, it is also possible to add a cutting horizontal axis, so that it integrates the topping, cutting, breaking and flipping of the multi-functional cutting machine. The device comes with a remote control, away from the glass, for installation operation.

Certifications & Standards

EAC

ISO9001

OEM/ODM

Model Specifications

Model	Max Glass Size	Glass Thickness	Processing Speed	Total Power	Machine Dimension	Machine Weight
Glass Breaking Table	3600mm*2400mm	3-19mm	100m/min	5Kw	3630mm2200mm900mm	900Kg

* Specifications subject to change without notice. Contact our sales team for the latest technical data and custom configurations.

Suitable Applications

Architectural Glass

For doors, windows, facades and curtain wall glass.

Mirror Glass

Suitable for mirror and decorative glass processing.

Furniture Glass

Table glass, cabinet glass and interior glass.

Industrial Glass

Supports customized glass cutting production.

Why Choose Jori?

Trusted by glass factories and engineering companies in over 20 countries worldwide.

Certified Quality

CE, EAC & ISO9001 certified for smooth customs clearance in global markets.

OEM

OEM / ODM Support

Flexible customization with 8 independent production lines and dedicated R&D team.

20+

Years Experience

Over 20 years of technical accumulation in glass processing machinery manufacturing.

24/7

After-Sales Service

Full technical support, installation guidance, spare parts and warranty coverage.
