Home › Glass Beveling Machine › Glass Lifting Beveling Machine
Glass Beveling Machine

Glass Lifting Beveling Machine

Lifting Beveling Machine

CE EAC ISO9001 OEM
Key Features
  • High-precision automatic cutting control
  • Stable heavy-duty machine frame structure
  • Low maintenance and easy operation
  • OEM / ODM customization supported
  • CE, EAC, ISO9001 certified for global export
Get A Quote Specifications
20+ Years Experience
CE Certified
OEM Supported
8 Prod. Lines

Reliable Glass Processing Solution

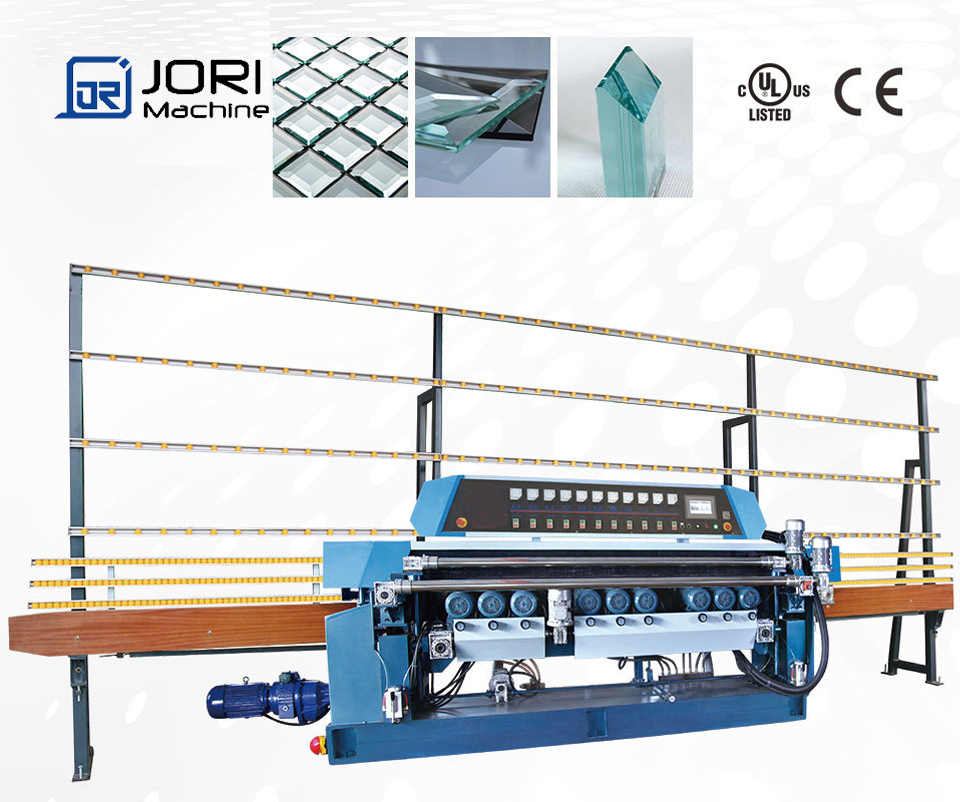

Glass lifting beveling machine JR361SJ series is a 10 grinding head front beam integral lifting glass bevel polishing machine, conventional models according to different configurations have two: JR361SJE electric digital display type and JR361SJP computer type. Machine can grind the inclined surface 45 degrees, suitable for grinding the straight bevel edge and bottom edge of flat glass, the rough grinding, fine grinding, polishing and grinding of the bottom edge of the beveled edge are completed at one time, and the effect after polishing is consistent with the mirror surface.This machine adopts PLC control system touch screen operation, direct grinding head motor, compact structure, low voice, less failure; The motor controls the overall swing angle of the twin screw, and has the function of the integral lifting and lowering of the front beam, which has advanced structure, high accuracy and easy operation; With the advantages of wide processing range, it is a special machine with a variety of functions such as processing wide beveled edge, mosaic small glass, and 3-45° multi-level edge, which truly achieves multiple uses of one machine.

Product Highlights
  • Main Features:
  • Machine with INOVANCE PLC, INOVANCE inverter, MCGS touch screen operation, with independent intellectual property rights operation interface;
  • Machine and operating system with trinity function, touch screen input bevel width, mechanical automatic adjustment;
  • Base, girder, swing frame, column, grinding head are high density casting parts, strong and stable fuselage;

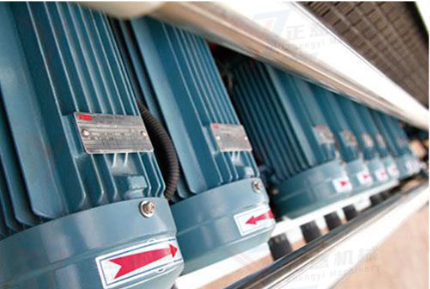

  • ABB international brand grinding head motor; 2.2KW variable frequency motor wide range governor, ZHUJIANG worm gear box;

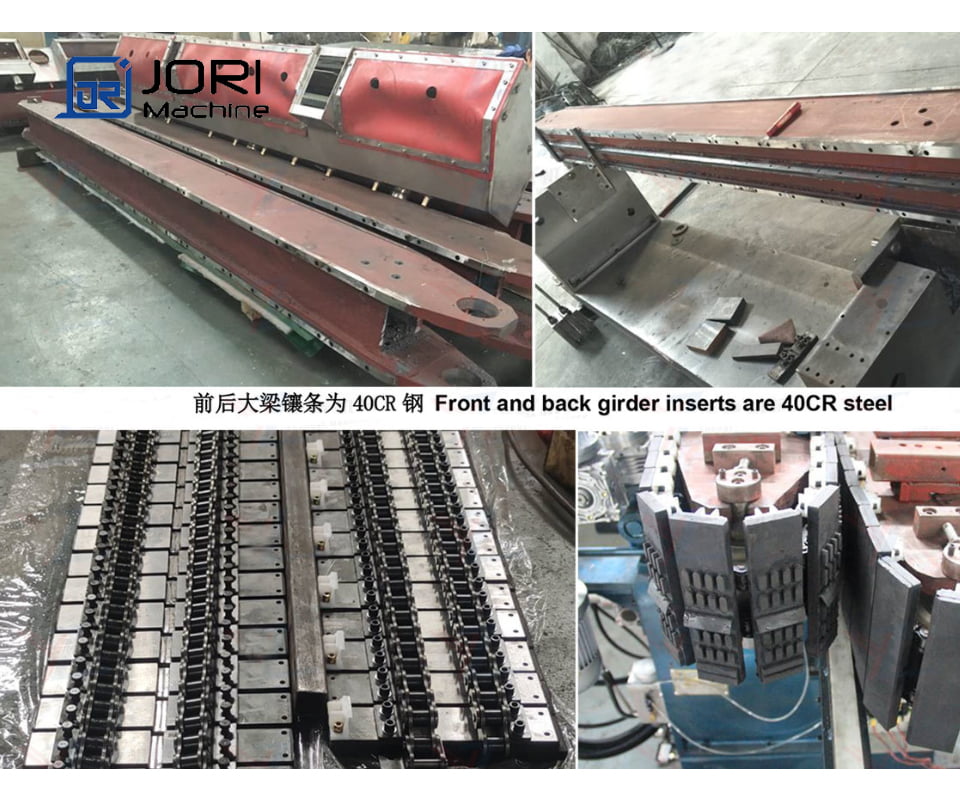

  • High quality alloy steel inserts of 40cr steel, the front and back pads are hardened and wear-resistant by 55 degrees high frequency quenching;
  • Front pads is combined with small pads construction structure, batch processing Mosaic glass loss splint without replacing the whole plate, reduce the cost of use;
  • Stainless steel water tank, two oil pumps on both sides respectively supply pressure plate, drag plate, lifting structure and other moving parts of lubrication;
  • Aluminum alloy scaffolding row; Italian BARBIERI synchronous belt transmission; Delxi brand electric;
  • High quality paint shield; unique waterproof technology, girder bottom with water brush;
  • Coarse grinding wheel, fine grinding wheel, polishing wheel all use “XINGLI” brand, fine polishing wheel and felt wheel we use Italian wheels.
Certifications & Standards
CE
EAC
ISO9001
OEM/ODM

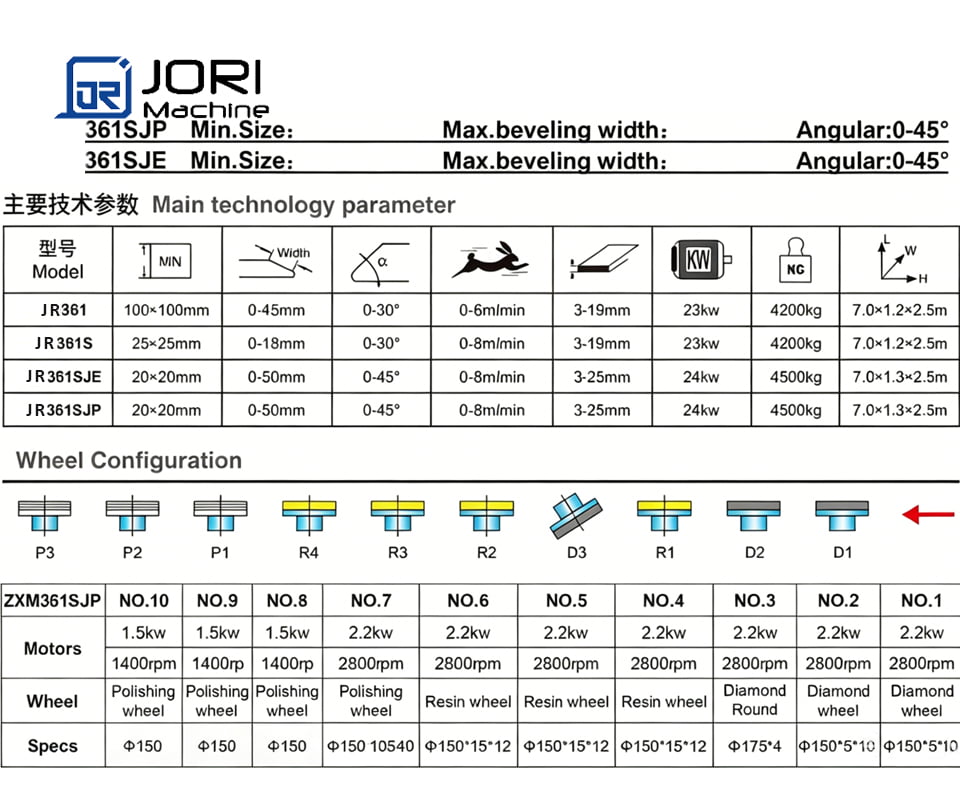

Model Specifications

Model Max Glass Size Glass Thickness Processing Speed Total Power Machine Dimension Machine Weight
JR361 0-45mm 3-19mm 0-6m/min 23kw 7.0x1.2x2.5m 4200kg
JR361S 0-18mm 3-19mm 0-8m/min 23kw 7.0x1.2x2.5m 4200kg
JR361SJE 0-50mm 3-25mm 0-8m/min 24kw 7.0x1.3x2.5m 4500kg
JR361SJP 0-50mm 3-25mm 0-8m/min 24kw 7.0x1.3x2.5m 4500kg

* Specifications subject to change without notice. Contact our sales team for the latest technical data and custom configurations.

Suitable Applications

Architectural Glass

For doors, windows, facades and curtain wall glass.

Mirror Glass

Suitable for mirror and decorative glass processing.

Furniture Glass

Table glass, cabinet glass and interior glass.

Industrial Glass

Supports customized glass cutting production.

Why Choose Jori?

Trusted by glass factories and engineering companies in over 20 countries worldwide.

CE

Certified Quality

CE, EAC & ISO9001 certified for smooth customs clearance in global markets.

OEM

OEM / ODM Support

Flexible customization with 8 independent production lines and dedicated R&D team.

20+

Years Experience

Over 20 years of technical accumulation in glass processing machinery manufacturing.

24/7

After-Sales Service

Full technical support, installation guidance, spare parts and warranty coverage.
