Reliable Glass Processing Solution

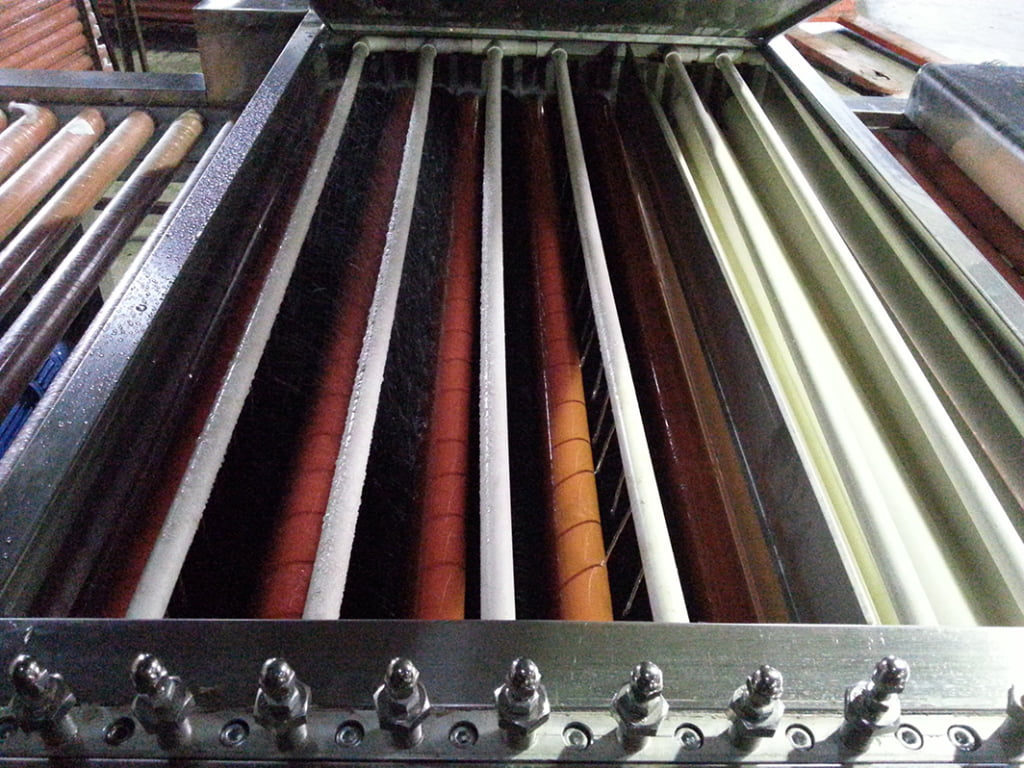

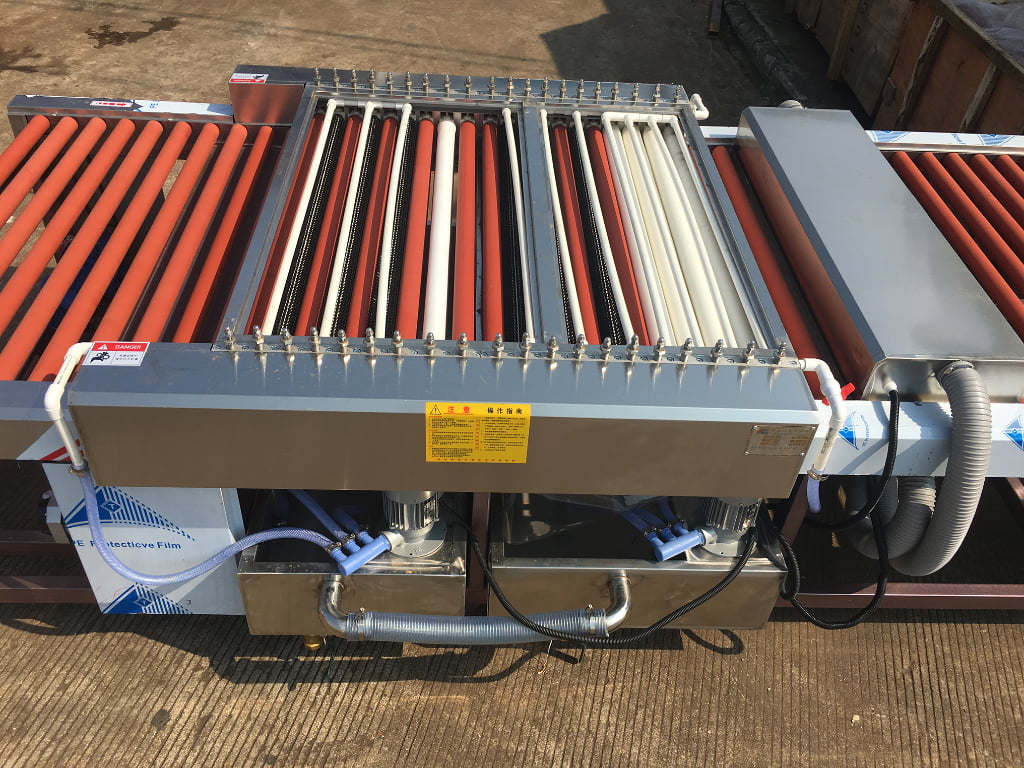

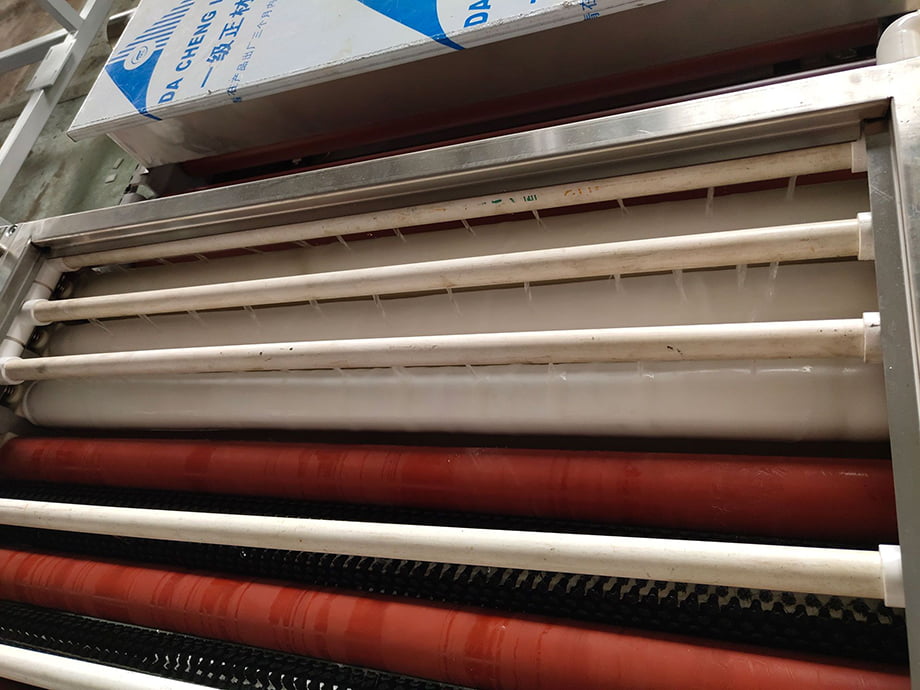

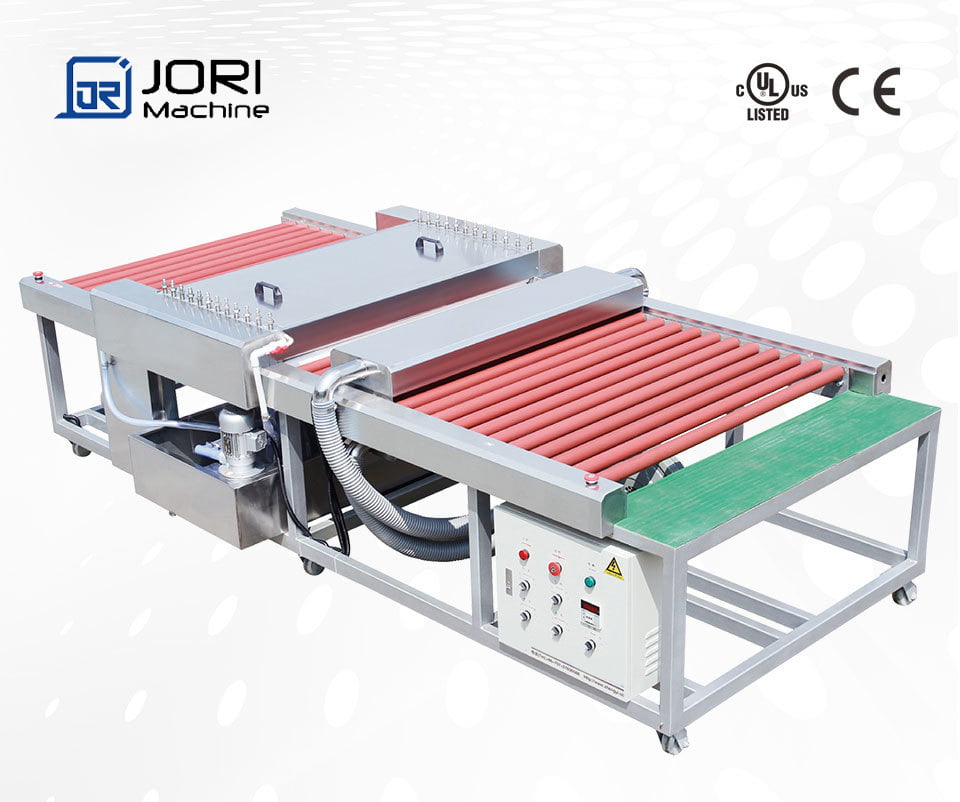

JR1200 Glass Washing Machine is for the automatic cleaning and drying of flat glass and lenses of varying thicknesses, accommodating a maximum processing width of up to 1200mm. Featuring a horizontal conveyor structure, this equipment integrates washing, dewatering, and hot-air drying functions into a single unit. It is widely utilized in the glass processing, door and window glass, furniture glass, and lens manufacturing industries. The complete machine consists of an infeed section, a washing section, a drying section, and an outfeed section. Characterized by stable operation and a compact design, it is ideally suited for continuous, automated production workflows. The washing section employs a configuration of 8 sets of brush rollers to ensure highly efficient cleaning, effectively removing stains and dust from the glass surface. The dewatering section utilizes 6 to 8 sets of sponge rollers to rapidly absorb water, thereby enhancing drying efficiency. The drying system is equipped with 6 stainless steel heating tubes and a powerful hot-air circulation mechanism, enabling rapid and uniform drying results. Automatic Glass Washing and Drying Machine supports stepless speed adjustment, allowing users to freely fine-tune conveyor speeds and temperature parameters according to specific production requirements, thereby facilitating efficient and flexible manufacturing operations.Industrial Glass Washing Machine for Glass Processing Line The JR series Glass Washing Machine encompasses a range of specifications and models—including the JR500, JR800, JR1200, JR1600, and JR2000—all of which can be customized to meet specific client needs.
