Home › Glass Washing Machine › Horizontal Glass Washing Machine with Air Knife Drying System
Glass Washing Machine

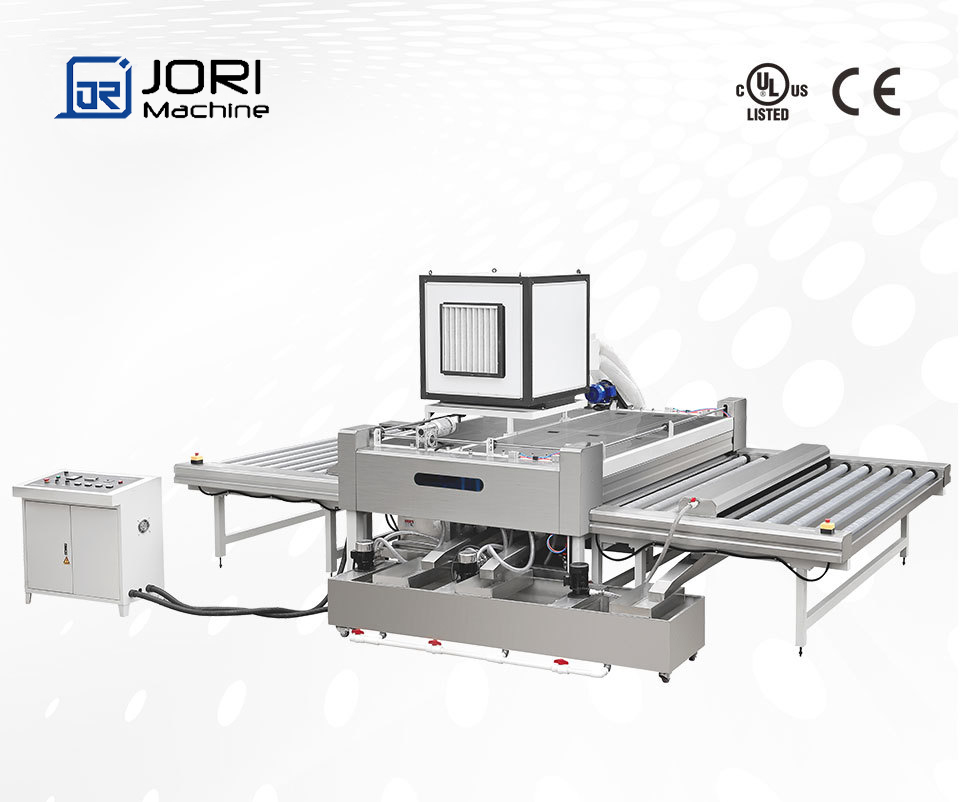

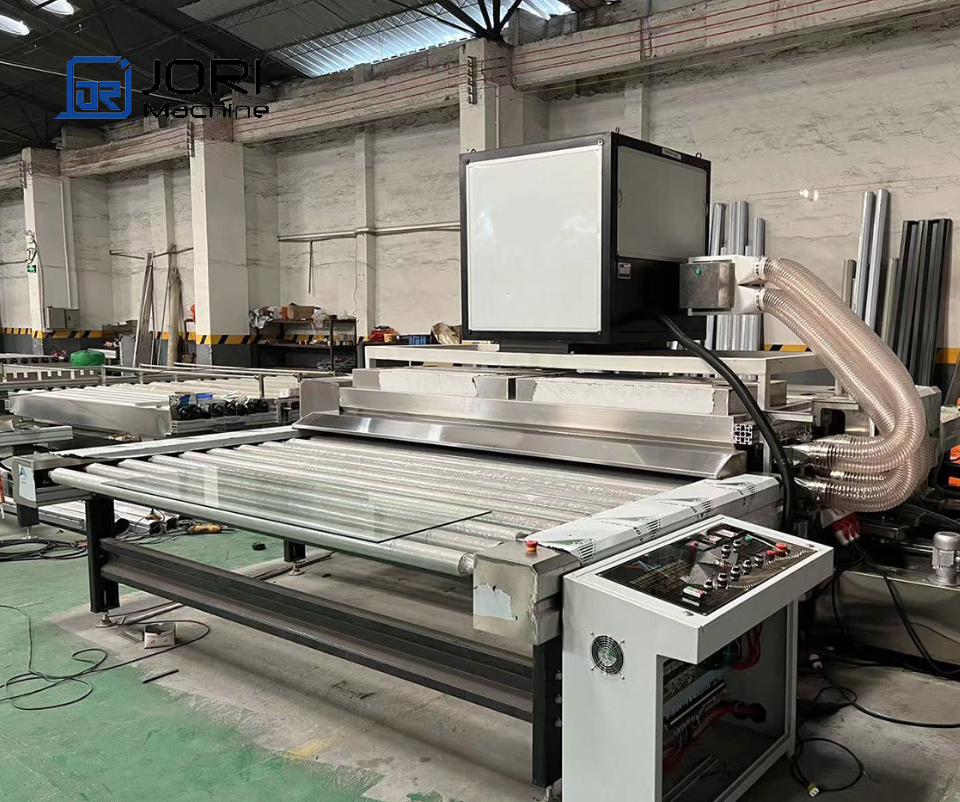

Horizontal Glass Washing Machine with Air Knife Drying System

Automatic Air Knife Glass Washing Machine for Low-E and Flat Glass

CE EAC ISO9001 OEM
Key Features
  • High-precision automatic cutting control
  • Stable heavy-duty machine frame structure
  • Low maintenance and easy operation
  • OEM / ODM customization supported
  • CE, EAC, ISO9001 certified for global export
Get A Quote Specifications
20+ Years Experience
CE Certified
OEM Supported
8 Prod. Lines

Reliable Glass Processing Solution

JR2500A Glass Washing Machine is a high-performance horizontal air knife glass cleaning machine for modern glass deep processing industries. Horizontal Glass Washing Machine With a maximum washing width of 2500mm and adjustable speed up to 10m/min, Air Knife Glass Washing Machine delivers efficient glass washing and drying for flat glass, coated glass, Low-E glass, photovoltaic glass, and safety glass applications. Equipped with frequency conversion speed regulation, dual straight air knife drying system, electric integral lifting structure, and soft brushes for delicate Low-E glass cleaning, the JR2500A ensures stable operation and superior cleaning results. Automatic Glass Cleaning Machine Supporting glass thicknesses from 3mm to 50mm and customizable cleaning widths from 1600mm to 3300mm, this glass washing and drying machine can be tailored to different production requirements. The lifting cleaning and air-drying section with digital display improves operation convenience and maintenance efficiency. Glass Washing Production Line is widely used in glass edging production lines, glazing lines, insulating glass production lines, and architectural glass manufacturing systems, making it an essential industrial glass processing machine for high-efficiency production.

Product Highlights
  • Glass Deep Processing glass washing machine is special designed for tempering line, laminating line, floating, coating and Low-e glass. It combined function of three step washing, used with frequency device driving system, which is easy to wash different size glass. Washing area installed with stainless steel or other special treatment steel. Optional for hard and soft brusher device, which is special designed for hard LOW-E glass washing. Glass Processing Machine can be design according to customer requirement. Notice: For this machine, except the frame of machine body is made by Iron, other air-knife\Machine guards(cover)\water tank all is used by stainless steel.
Certifications & Standards
CE
EAC
ISO9001
OEM/ODM

Model Specifications

Model Max Glass Size Glass Thickness Processing Speed Total Power Machine Dimension Machine Weight
JR2000A 2000mm 3-25mm 0-10m/min 35kw 5.7x3.5x2.8m 3000kg
JR2500A 2500mm 3-30mm 0-10m/min 37kw 5.7x4.0x2.8m 3600kg
JR2500B 2500mm 3-30mm 0-16m/min 45kw 6.6x4.5x2.4m 4200kg
JR3000A 3000mm 3-25mm 0-7m/min 35kw 5.7x5.0x2.8m 4500kg

* Specifications subject to change without notice. Contact our sales team for the latest technical data and custom configurations.

Suitable Applications

Architectural Glass

For doors, windows, facades and curtain wall glass.

Mirror Glass

Suitable for mirror and decorative glass processing.

Furniture Glass

Table glass, cabinet glass and interior glass.

Industrial Glass

Supports customized glass cutting production.

Why Choose Jori?

Trusted by glass factories and engineering companies in over 20 countries worldwide.

CE

Certified Quality

CE, EAC & ISO9001 certified for smooth customs clearance in global markets.

OEM

OEM / ODM Support

Flexible customization with 8 independent production lines and dedicated R&D team.

20+

Years Experience

Over 20 years of technical accumulation in glass processing machinery manufacturing.

24/7

After-Sales Service

Full technical support, installation guidance, spare parts and warranty coverage.

Get In Touch

Request A Quote For This Machine

Tell us your glass size, processing requirement, quantity and destination country. Our sales team will reply within 24 hours with machine options and quotation details.
