Home › Glass Beveling Machine › Large Bevel Width Glass Beveling Machine
Glass Beveling Machine

Large Bevel Width Glass Beveling Machine

Eleven Grinding Head Glass Bevel Machine

CE EAC ISO9001 OEM
Key Features
  • High-precision automatic cutting control
  • Stable heavy-duty machine frame structure
  • Low maintenance and easy operation
  • OEM / ODM customization supported
  • CE, EAC, ISO9001 certified for global export
Get A Quote Specifications
20+ Years Experience
CE Certified
OEM Supported
8 Prod. Lines

Reliable Glass Processing Solution

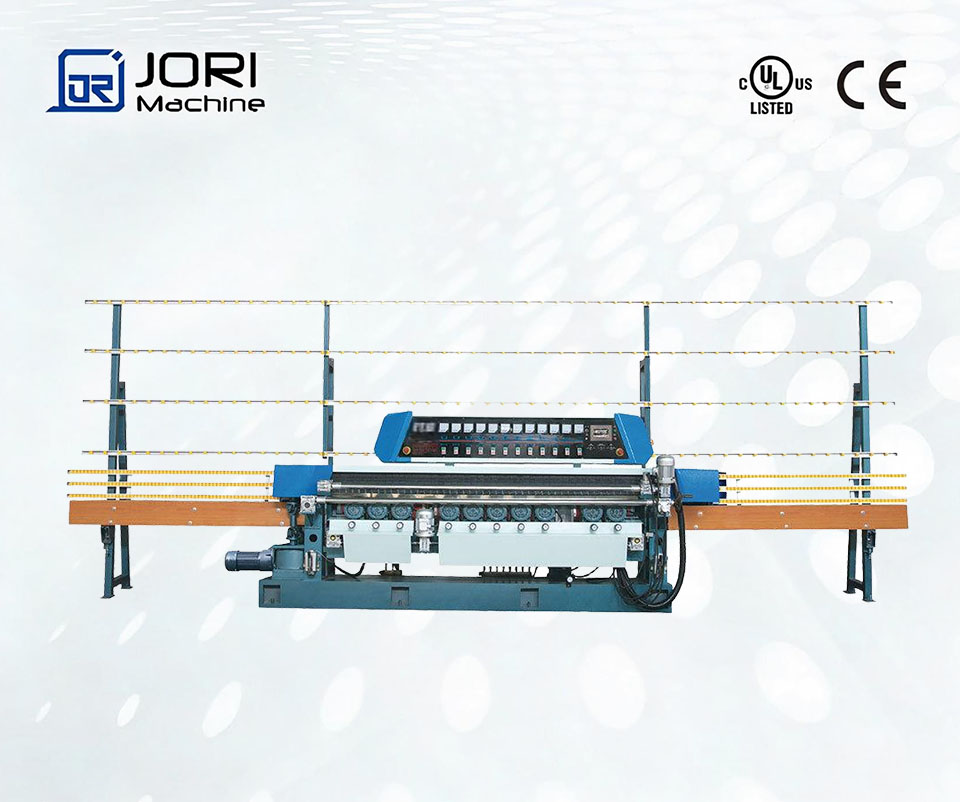

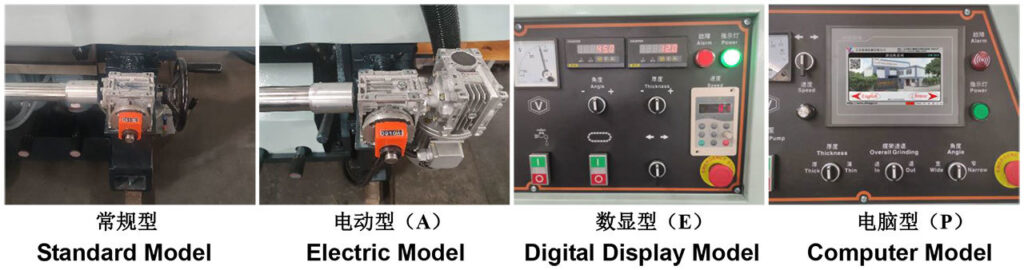

Glass beveling machine JR371 series is an eleven grinding head polishing bevel machine, conventional models according to different configurations have three models: JR371 ordinary type / JR371E electric digital display type / JR371P computer type. This machine is specially designed and manufactured for customer needs of glass large beveled, suitable for mass grinding and polishing of flat glass beveled edge and bottom edge; the front and back chain plates are made of thickened steel plates, which have strong rigidity, are not easy to deform, have good wear resistance, smooth transmission, direct grinding head motor, low voice, and few failures; The motor controls the overall swing angle of the twin screw, and has the function of integral advance and retreat of the grinding head swing frame; It has the advantages of advanced structure, high precision, convenient operation and strong stability.

Product Highlights
  • Main Features:

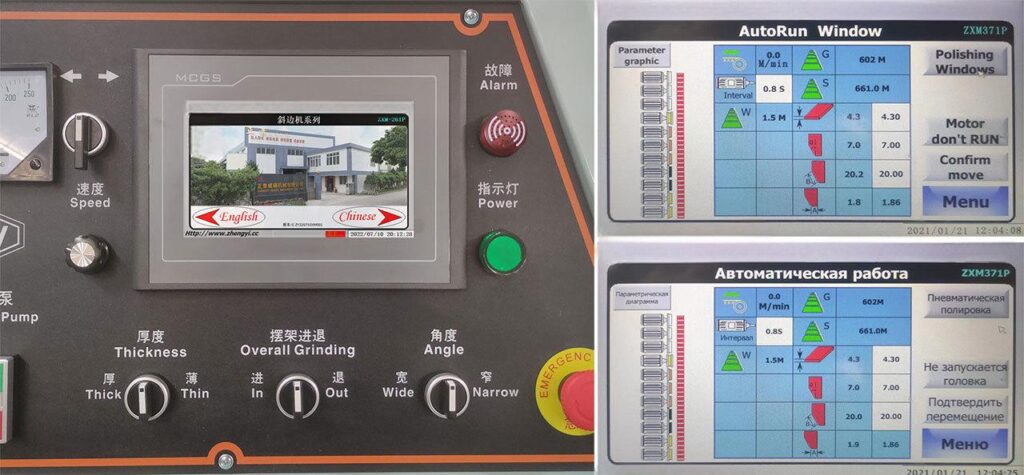

  • ZXM371P is equipped with INOVANCE PLC, INOVANCE inverter, MCGS touch screen operation, with independent intellectual property rights operation interface;
  • ZXM371P type, operating system with trinity function, touch screen input bevel width, mechanical automatic adjustment;
  • ZXM371E type is based on the 371 ordinary type to add electric and digital display functions, and with swing frame integral advance and retreat function;

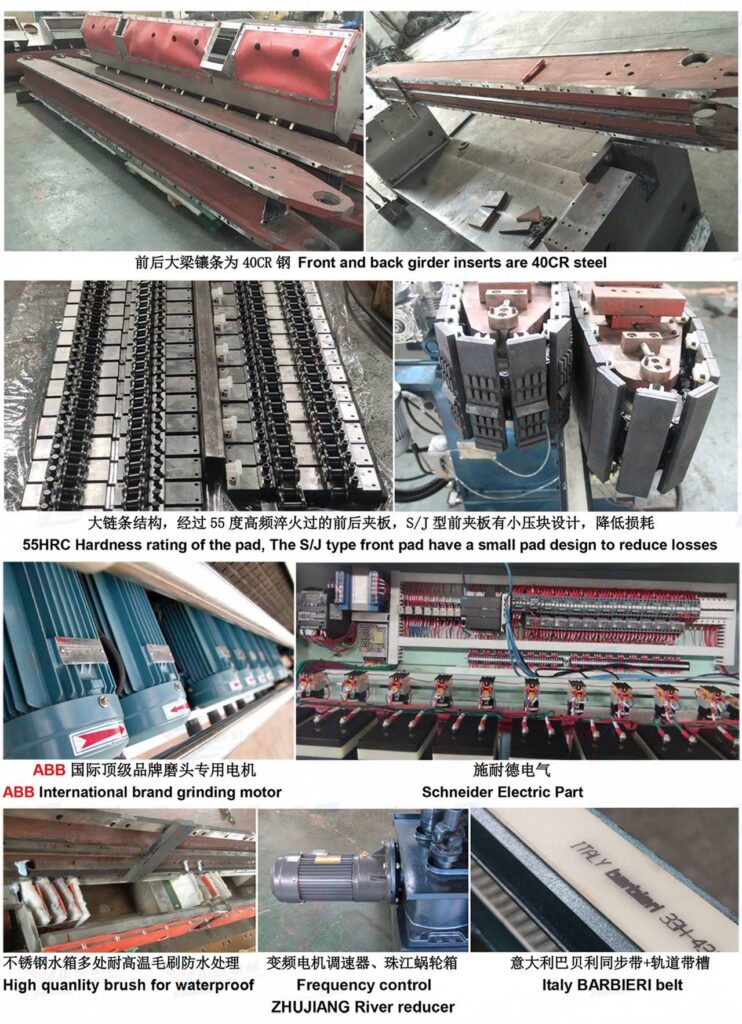

  • Base, girder, swing frame, column, grinding head are high density casting parts, strong and stable fuselage;
  • ABB international brand grinding head motor; 2.2KW variable frequency motor wide range governor, ZHUJIANG worm gear box;
  • High quality alloy steel inserts of 40cr steel, the front and back pads are hardened and wear-resistant by 55 degrees high frequency quenching;
  • Front pads is combined with small pads construction structure, batch processing Mosaic glass loss splint without replacing the whole plate, reduce the cost of use;
  • Stainless steel water tank, two oil pumps on both sides respectively supply pressure plate, drag plate, lifting structure and other moving parts of lubrication;
  • Aluminum alloy scaffolding row; Italian BARBIERI synchronous belt transmission; Delxi brand electric;
  • High quality paint shield; unique waterproof technology, girder bottom with water brush;

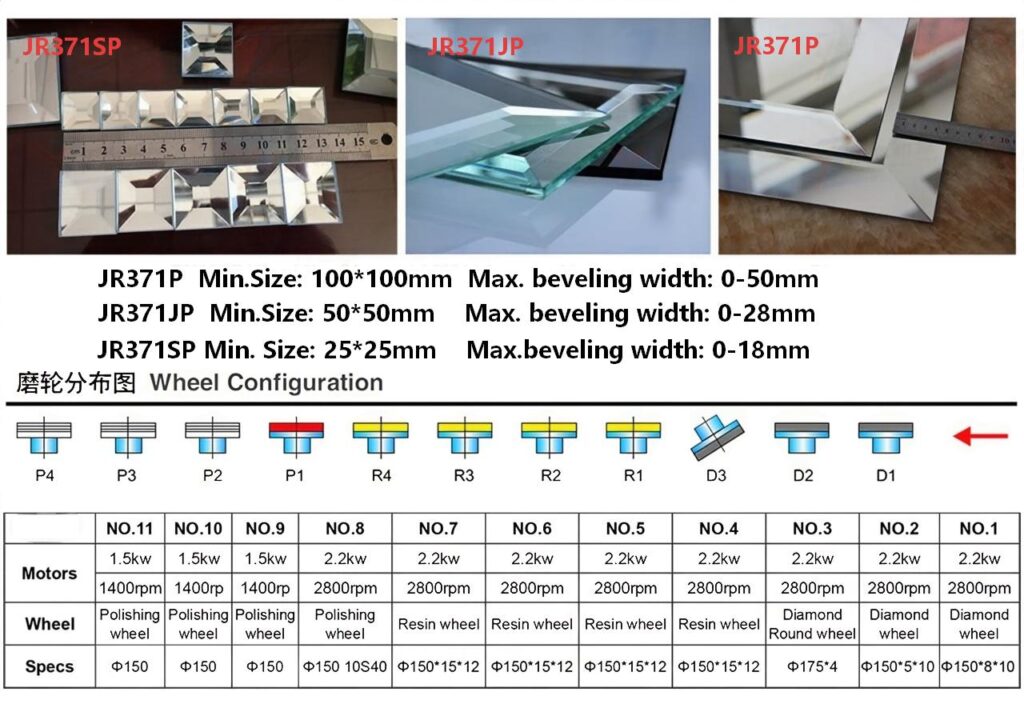

  • Coarse grinding wheel, fine grinding wheel, polishing wheel all use “XINGLI” brand, fine polishing wheel and felt wheel we use Italian wheels.
Certifications & Standards
CE
EAC
ISO9001
OEM/ODM

Model Specifications

Model Max Glass Size Glass Thickness Processing Speed Total Power Machine Dimension Machine Weight
JR261 3600-3600MM 3-19MM 0-6M/MIN 21.31KW 6800*1200*2500MM 4000KG

* Specifications subject to change without notice. Contact our sales team for the latest technical data and custom configurations.

Suitable Applications

Architectural Glass

For doors, windows, facades and curtain wall glass.

Mirror Glass

Suitable for mirror and decorative glass processing.

Furniture Glass

Table glass, cabinet glass and interior glass.

Industrial Glass

Supports customized glass cutting production.
