Three Heads Glass Drilling Machine

Reliable Glass Processing Solution

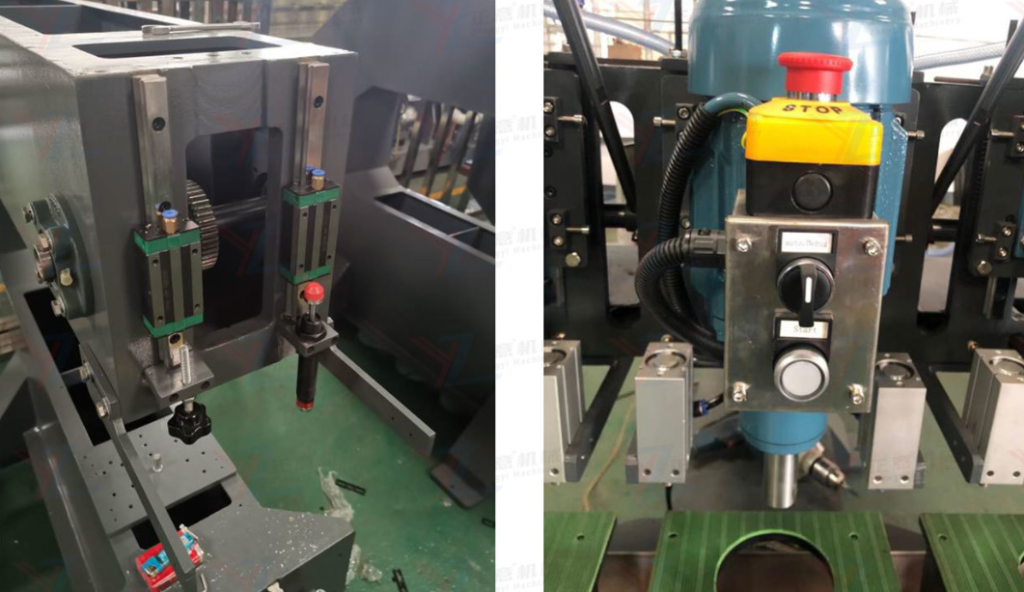

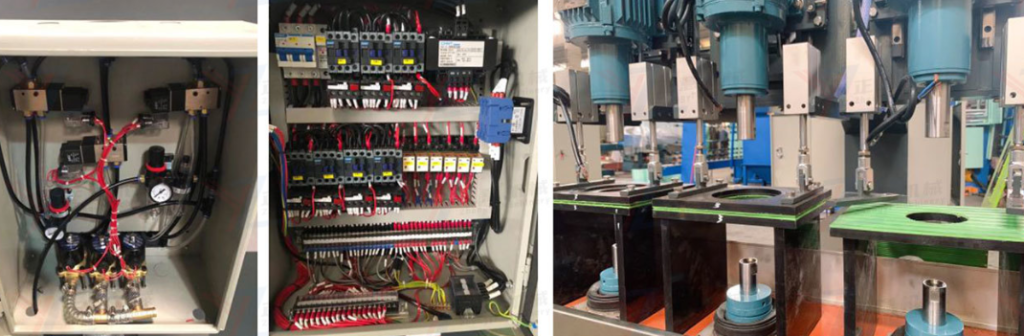

Three Heads Glass Drilling Machine is high-efficiency automatic drilling equipment for architectural flat glass. With three independent drilling heads working synchronously, it greatly improves processing output. Servo positioning and upper-lower bidirectional drilling avoid glass chipping and cracking. Suitable for tempered, Low-E, shower door and curtain wall glass, widely used in glass deep processing factories for mass hole processing.

Product Highlights

Three Heads Automatic Glass Drilling Machine Main Advantages
1. Ultra-high production efficiency： Three working heads operate at the same time, processing multiple holes in one clamping. Output is 3 times higher than single-head drilling machines, greatly lifting factory daily capacity.

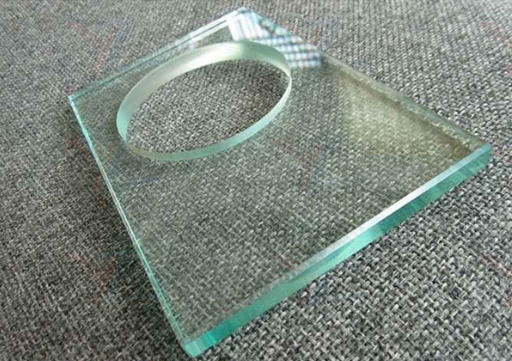

2. Low scrap rate：Bidirectional synchronous drilling balances glass internal stress, effectively prevent edge chipping, crack and breakage, save raw material cost.
3. Wide processing compatibility：Adjustable drill spacing adapts various glass sizes and hole layouts, meets customized processing demand of door, window, shower and curtain wall glass.
4. Intelligent simple operation：Visual touch screen control, directly import CAD files, automatic positioning and drilling, less manual operation and lower labor cost.

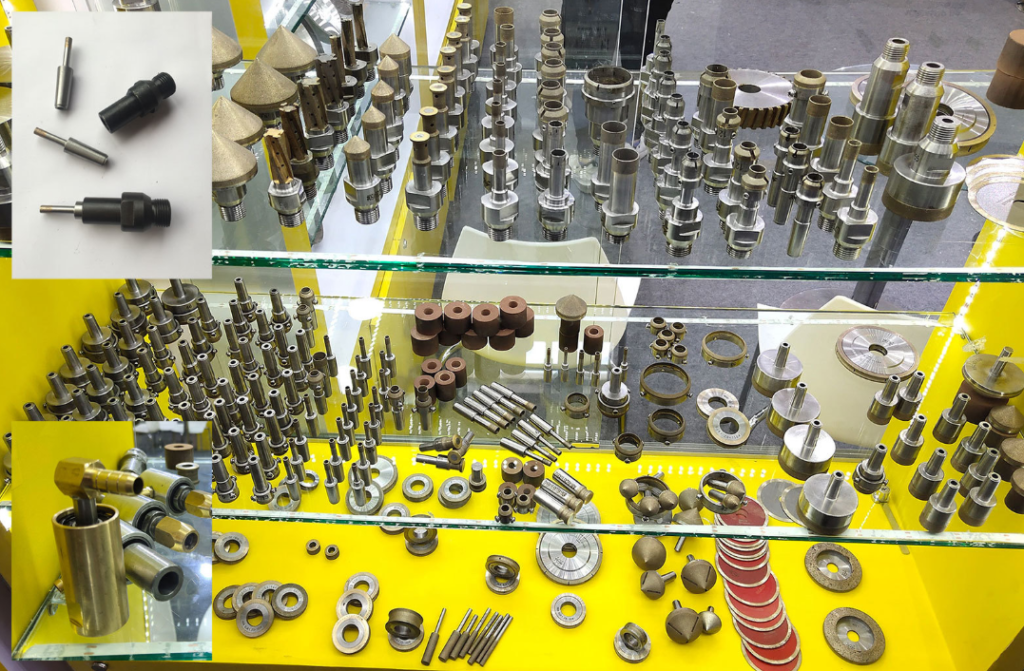

5. Stable & durable performance：Thick steel welding frame with vibration resistance design. Circulating cooling system protects diamond drill bits and guarantees smooth processing surface.
6. Cost-effective for mass production：One machine replaces three single-head drillers, save workshop space and equipment purchasing cost, ideal for large glass processing manufacturers.

Certifications & Standards

EAC

ISO9001

OEM/ODM

Model Specifications

Model	Max Glass Size	Glass Thickness	Processing Speed	Total Power	Machine Dimension	Machine Weight
ZYZ0222/ ZYZ0222A	2440x3600mm	3-19mm	1-8m/min	9KW	220020001600mm	1000kg

* Specifications subject to change without notice. Contact our sales team for the latest technical data and custom configurations.

Suitable Applications

Architectural Glass

For doors, windows, facades and curtain wall glass.

Mirror Glass

Suitable for mirror and decorative glass processing.

Furniture Glass

Table glass, cabinet glass and interior glass.

Industrial Glass

Supports customized glass cutting production.

Why Choose Jori?

Trusted by glass factories and engineering companies in over 20 countries worldwide.

Certified Quality

CE, EAC & ISO9001 certified for smooth customs clearance in global markets.

OEM

OEM / ODM Support

Flexible customization with 8 independent production lines and dedicated R&D team.

20+

Years Experience

Over 20 years of technical accumulation in glass processing machinery manufacturing.

24/7

After-Sales Service

Full technical support, installation guidance, spare parts and warranty coverage.
