Vertical Glass Cleaning Machine

Reliable Glass Processing Solution

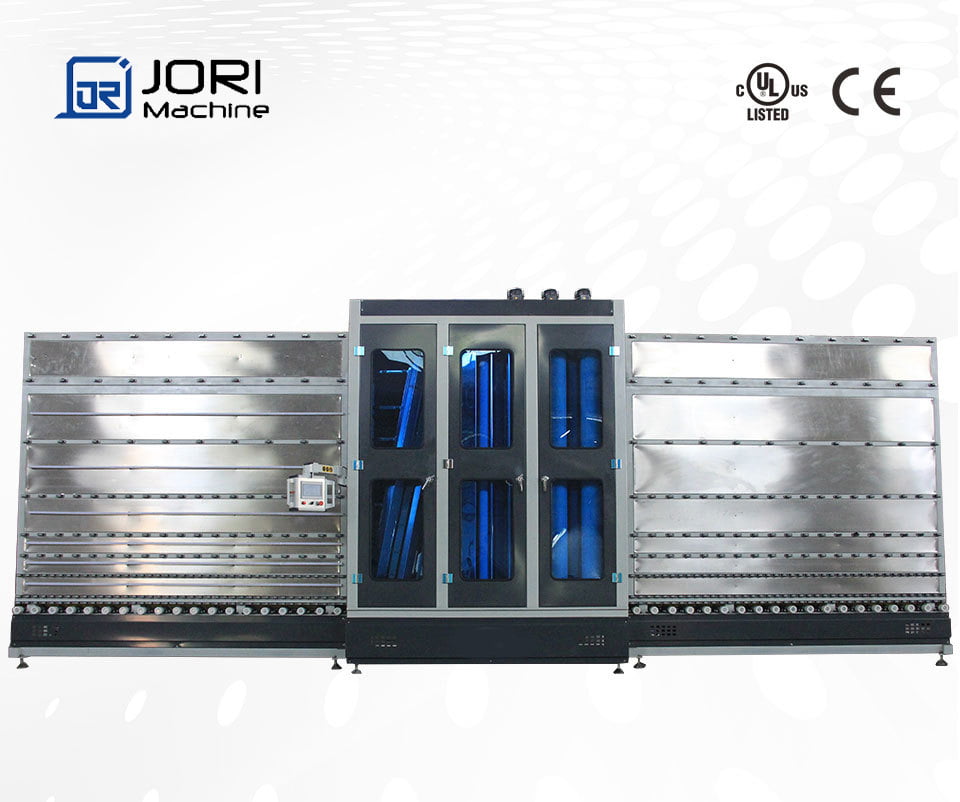

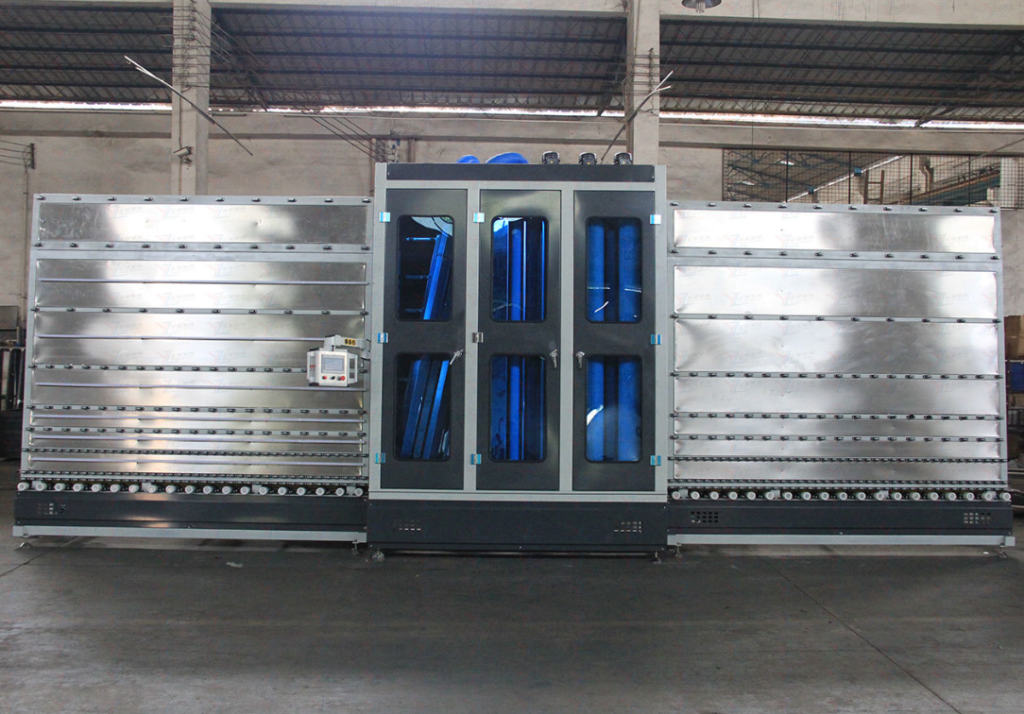

Vertical glass washing machine JP2500P is a special equipment for the production and processing of glass washing in construction, building materials, decoration and other industries, suitable for cleaning flat glass with a thickness of 3-25mm and a maximum height of 2500mm. Glass cleaning machine is mainly composed of cleaning box, drying box, transmission system, frame, water tank, air supply box, electrical control and other parts. The whole cleaning and drying process is fully automatic and does not require manual operation. Vertical glass cleaning machine adds PLC control touch screen operation function on the basis of ordinary vertical cleaning machine, and the height of this model can be customized 1600-2500mm.

Product Highlights

JP2500P Vertical Glass Washing Machine is a high-performance automatic glass cleaning system for construction, building materials, and decorative glass processing industries. Vertical Glass Cleaning Machine is suitable for cleaning flat glass with thickness from 3mm to 25mm and a maximum height of 2500mm, with customizable height options ranging from 1600mm to 2500mm.

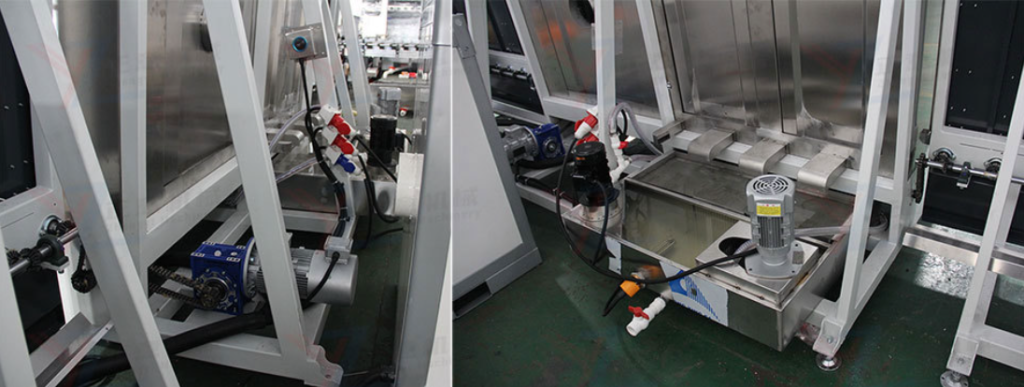

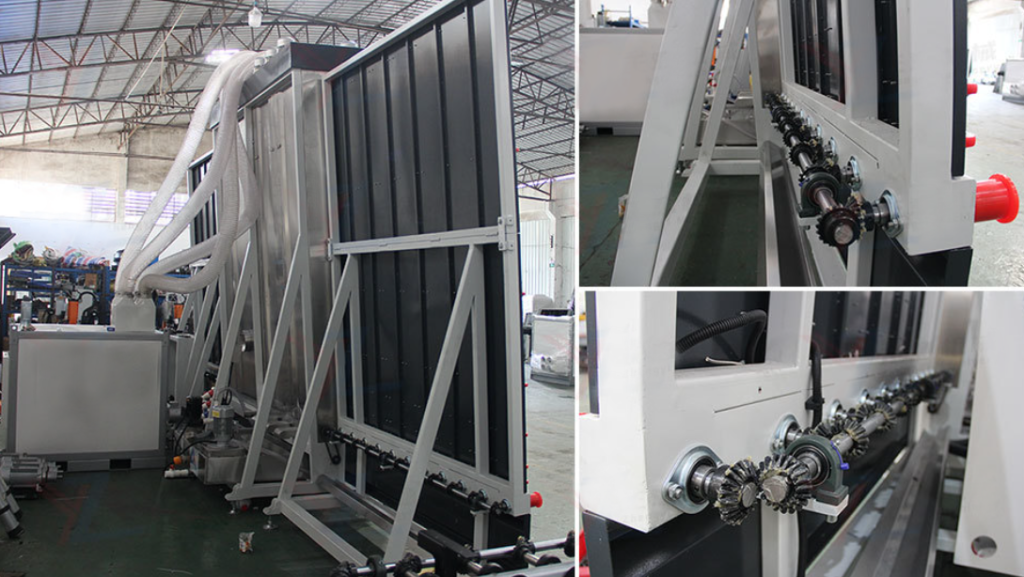

Vertical glass cleaning machine is composed of a cleaning box, drying box, transmission system, rigid frame, water tank, air supply system, and advanced electrical control system. The entire washing and drying process is fully automatic, ensuring stable performance, high efficiency, and zero manual operation.
Equipped with PLC intelligent control and a touch screen operation interface, the JP2500P offers easy operation, precise control, and improved production automation compared to standard vertical glass washers. PLC Control Glass Cleaning Machine delivers strong cleaning performance and efficient drying, making it an ideal solution for modern glass deep processing lines in architectural, decoration, and industrial glass applications.

Certifications & Standards

EAC

ISO9001

OEM/ODM

Model Specifications

Model	Max Glass Size	Glass Thickness	Processing Speed	Total Power	Machine Dimension	Machine Weight
JR1600	1600mm	3-15mm	0.5-7m/min	17kw	6.8x1.6x2.7m	1800kg
JR2000	2000mm	3-19mm	0.5-7m/min	18kw	7.2x2.0x3.1m	2300kg
JR2500	2500mm	3-19mm	0.5-7m/min	25kw	8.4x2.0x3.5m	2800kg

* Specifications subject to change without notice. Contact our sales team for the latest technical data and custom configurations.

Suitable Applications

Architectural Glass

For doors, windows, facades and curtain wall glass.

Mirror Glass

Suitable for mirror and decorative glass processing.

Furniture Glass

Table glass, cabinet glass and interior glass.

Industrial Glass

Supports customized glass cutting production.

Why Choose Jori?

Trusted by glass factories and engineering companies in over 20 countries worldwide.

Certified Quality

CE, EAC & ISO9001 certified for smooth customs clearance in global markets.

OEM

OEM / ODM Support

Flexible customization with 8 independent production lines and dedicated R&D team.

20+

Years Experience

Over 20 years of technical accumulation in glass processing machinery manufacturing.

24/7

After-Sales Service

Full technical support, installation guidance, spare parts and warranty coverage.
