Glass Washing Machine

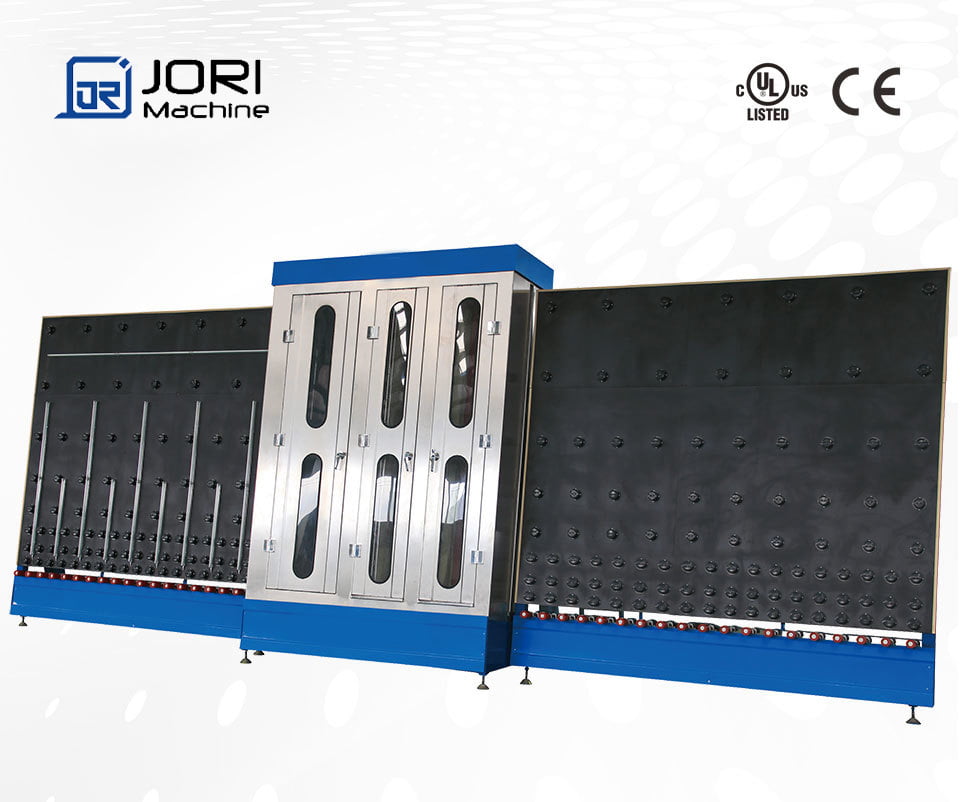

Vertical Glass Washing Machine

Vertical Glass Washing Machine for Industrial Glass Cleaning and Drying

CE EAC ISO9001 OEM

Key Features

High-precision automatic cutting control
Stable heavy-duty machine frame structure
Low maintenance and easy operation
OEM / ODM customization supported
CE, EAC, ISO9001 certified for global export

Get A Quote Specifications

20+ Years Experience

CE Certified

OEM Supported

8 Prod. Lines

Reliable Glass Processing Solution

Vertical Glass Washing Machine is a high-efficiency industrial glass cleaning and drying equipment for modern glass deep processing production lines. Vertical Glass Cleaning Machine is specially used for vertical cleaning of flat glass, providing stable and reliable performance for different glass thicknesses and types, including Low-E glass, coated glass, and architectural glass.

Product Highlights

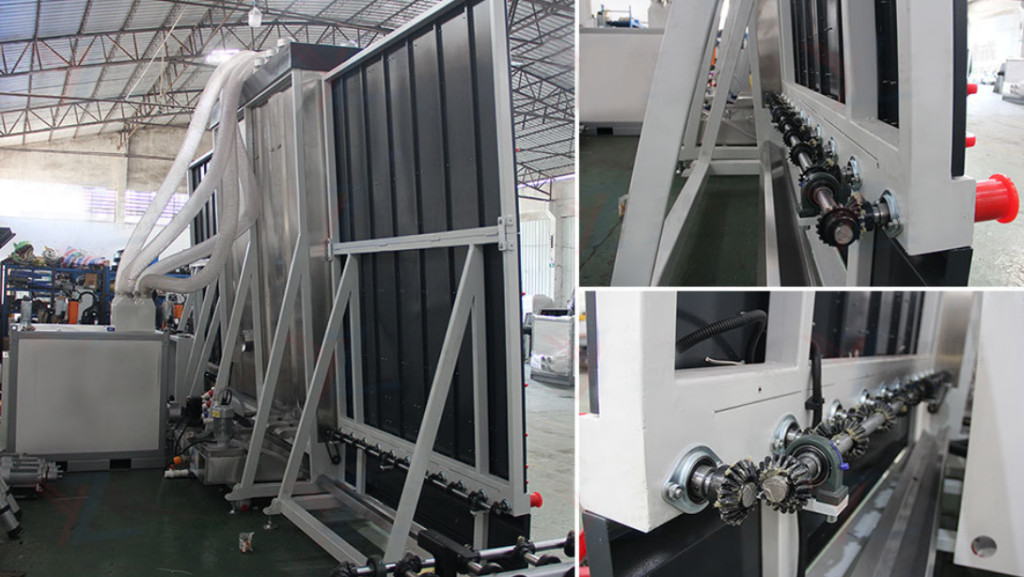

Glass Washing and Drying Machine Mechanical introduction：
Vertical glass washing machine JR series is a special equipment for the production and processing of glass washing in construction, building materials, decoration and other industries, suitable for washing flat glass with a thickness of 3-19mm and a maximum height of 2500mm. The machinery is mainly composed of cleaning box, drying box, transmission system, frame, water tank, air supply box, electrical control and other parts. The whole washing and drying process is fully automatic and does not require manual operation. The specifications of the vertical cleaning machine JR series are: JR1600, JR2000, JR2500, etc.

Certifications & Standards

EAC

ISO9001

OEM/ODM

Model Specifications

Model	Max Glass Size	Glass Thickness	Processing Speed	Total Power	Machine Dimension	Machine Weight
JR1600	1600mm	3-15mm	0.5-7m/min	17kw	6.8x1.6x2.7m	1800kg
JR2000	2000mm	3-19mm	0.5-7m/min	18kw	7.2x2.0x3.1m	2300kg
JR2500	2500mm	3-19mm	0.5-7m/min	25kw	8.4x2.0x3.5m	2800kg

* Specifications subject to change without notice. Contact our sales team for the latest technical data and custom configurations.

Suitable Applications

Architectural Glass

For doors, windows, facades and curtain wall glass.

Mirror Glass

Suitable for mirror and decorative glass processing.

Furniture Glass

Table glass, cabinet glass and interior glass.

Industrial Glass

Supports customized glass cutting production.

Why Choose Jori?

Trusted by glass factories and engineering companies in over 20 countries worldwide.

Certified Quality

CE, EAC & ISO9001 certified for smooth customs clearance in global markets.

OEM

OEM / ODM Support

Flexible customization with 8 independent production lines and dedicated R&D team.

20+

Years Experience

Over 20 years of technical accumulation in glass processing machinery manufacturing.

24/7

After-Sales Service

Full technical support, installation guidance, spare parts and warranty coverage.
